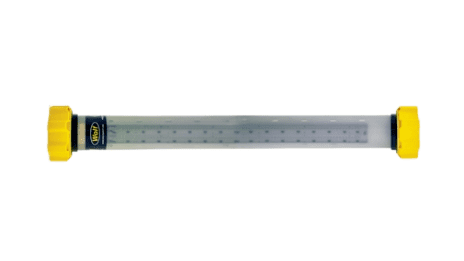

Wolflite, LX-400, LINKEX LED TEMPORARY LUMINAIRE
Tags:
The LinkEx LED Temporary Luminaire is a high powered LED Leadlamp for use in short-term lighting installations and maintenance tasks and is CE marked to the ATEX directive and IECEx certified for safe use in Zones 1 and 2 potentially explosive gas and dust atmospheres, where a T3/T4 (model dependent) temperature class permits.
THB1.00
Choose Quantity
Product Details
TECHNICAL INFORMATION
| PRODUCT REFERENCE | LX-400 | |
|---|---|---|
| PRODUCT DESCRIPTION | LinkEx LED ATEX Temporary Luminaire | |
| T4 Low (LV) & High (HV) Voltage | T3 High Voltage (HV) | |
| CODE | NON-LINKABLE II 2 GD Ex e mb op is IIC T4 Gb (-20°C to +55°C) Ex t IIIC T135°C Db IP67 LINKABLE II 2 GD Ex e mb opis IIC T4 Gb (-20°C to +55°C) Ex t IIIC T135°C Db IP66* | NON-LINKABLE II 2 GD Ex e mb op is IIC T3 Gb (-20°C to +40°C) Ex t IIIC T170°C Db IP67 LINKABLE II 2 GD Ex e mb op is d IIC T3 Gb (-20°C to +40°C) Ex t IIIC T170°C Db IP66* |
| TYPE OF PROTECTION | "e" increased safety, "mb" encapsulation, "d" flameproof | |
| AREA OF CLASSIFICATION (GAS) | Zones 1 & 2, Gas Groups IIA, IIB, IIC | |
| TEMPERATURE CLASS | T4 | T3 |
| AREA OF CLASSIFICATION (DUST) | Zones 21 & 22 | |
| MAX SURFACE TEMP (DUST) | 135°C | 170°C |
| AMBIENT TEMPERATURE | -20°C to +55°C | -20°C to +40°C |
| CERTIFICATE | SIRA12ATEX3177X IECEx SIR 12.0070X CML 18ATEX3371X IECEx CML 18.0197X | |
| ENCLOSURE AND LENS | Polycarbonate with Anti-static Coating | |
| BEAM TYPE | Wide Angle, Diffused Area Light (180° or 360°) | |
| LIGHT SOURCE: | TYPE | LED |
| LIFE | Over 60,000 hrs | |
| POWER | 24VAC ≈27W (42VA) 48VAC ≈27W (51VA) HV ≈ 26W | ≈32W |
| OUTPUT | 4,000 lm (at source) | 3,250 lm (at source) |
| INPUT VOLTAGE | LV 18-50V AC/DC HV 90-264V AC | 85-264V AC |
| WEIGHT (NON-LINKABLE) | 3.0kg without cable | 3.6kg without cable |
| LENGTH (NON-LINKABLE) | 0.7m | |
| INGRESS PROTECTION | Non-Linkable (No Socket) IP67 / Linkable (Socket Fitted) IP66* | |
| INCLUDED | Supplied with lens protecting film (LX-545), protection cover kit (LX-621) and hanging straps (LX-654) |
