Wolflite, XT-70, HANDLAMP
Tags:
THB0.00
Choose Quantity
Product Details

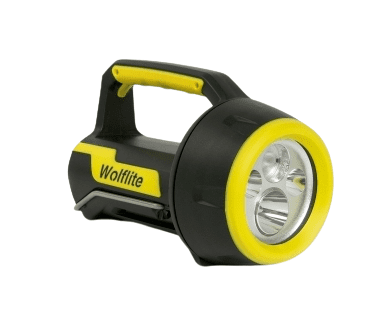

Wolf Wolflite XT-70 is a rechargeable LED handlamp with “ib” intrinsic safety type of explosion protection for hazardous areas – using high power LED as the light source the Wolflite XT-70 provides an output of 350+ lm (White).
| Wolf Wolflite Part Reference | Wolf XT-70 | |
| Handlamp Description | Rechargeable Safety Handlamp | |
| Performance | ||
| Hazardous Area Code (ATEX & IECEx) | Industrial | II 2GD Ex ib IIC T4 Gb IP67, Ex ib IIIB T185ºC Db (Temperature ambient -30ºC to +40ºC) |
| Mining | I M2 Ex ib I Mb IP67 | |
| Type of Protection | “ib” Intrinsic Safety | |
| Area of Hazardous Classification (Gas) | Zones 1 and 2, Gas Groups IIA, IIB & IIC | |
| Temperature Classification (Gas) | T4 | |
| Area of Hazardous Classification (Dust) | Zones 21 and 22, Dust Groups IIIA and IIIB | |
| Maximum Surface Temperature (Dust) | 185ºC | |
| Ambient Temperature | -30ºC to +40ºC | |
| ATEX Certificate | ATEX Baseefa09ATEX0326X / IECEx BAS 09.0153X | |
| Enclosure | Impact resistant thermoplastic, electrostatic non-hazardous | |
| Lens | Toughened glass | |
| Beam Type | Spot / Flood | |
| Light Source | Type | High Power LED |
| Quantity | 2 x White | |
| Output | 350+ Im (White) | |
| Life | 25,000+ Hours | |
| Power Source | Type | Rechargeable battery, Lithium-Ion |
| Part Number | XT-204 | |
| Life | Up to 500 recharge cycles | |
| Light Duration | Up to 7.5 / 15.0 hours | |
| Ingress Protection | IP67 to EN60529: 1992 | |
| Weight | 1.2kg | |
| Compatible Charger | XT-200L 12-24VDC / XT-200H 90V-254VAC | |
| Recharge Time | 3.5 hours |
